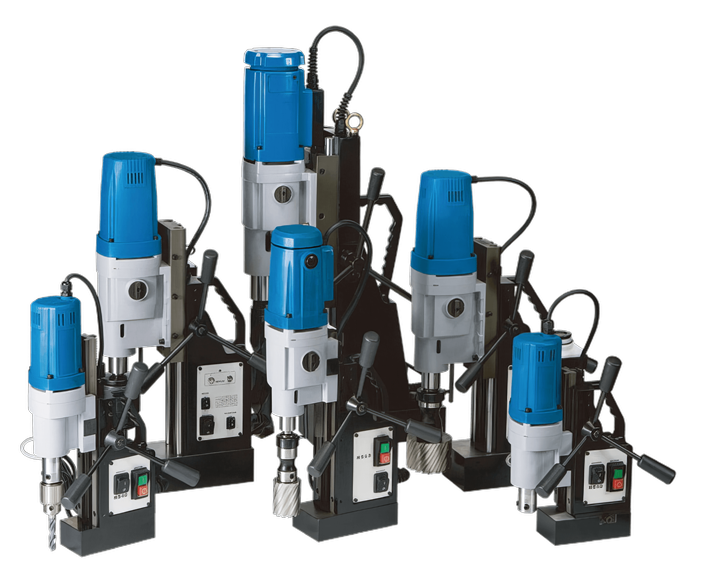

Hercules Series
H40
MAIN FEATURES
» Very compact and lightweight design- only 12Kg / 26.45 lbs.
» Improved magnetic holding power.
» Weldon Shank.
» Keyless Chuck and Swivel base are option.
» CE confirmed.
* Available in 110/120V or 220/240V, AC 50-60Hz
* Supplied in plastic case complete with ; Safety chain, Carabina, Hexagon key, Coolant bottle.
SPECIFICATIONS
» Height: 345(485)mm / 13.58” (19.09”)
» Width: 170mm / 6.69”
» Length: 230mm / 9.65”
» Stroke: 150(200)mm 5.90” (7.87”)
» Net Weight 12kg / 26.45 lbs
» Magnet force on 1″ steel plate 9,800N
» Power consumption(input) 1,150 Watt / 2156 lbs
» Speed(No load, RPM) 625
» Hole capacity
– Twist Drill Ø13mm / 1/2”
– Annular cutter Ø40mm / 1-1/2”
H40MT2
MAIN FEATURES
» Powerful double insulated motor.
» Quick and easy conversion from twist drill to annular cutter
» MT2 Arbor.
» 2 Gears
» CE confirmed.
* Available in 110/120V or 220/240V, AC 50-60Hz
* Supplied in plastic case complete with ; Arbor for cutters, Safety chain, Coolant bottle, Carabina, and Hexagon key.
SPECIFICATIONS
» Height: 430(620)mm / 16.93” (24.40”)
» Width: 200mm / 7.87”
» Length: 260mm / 10.23”
» Stroke: 190(240)mm / 7.48” (9.44”) Twist
» Net Weight: 17kg / 37.47 lbs
» Magnet force on 1″ steel plate 15,300N / 3366 lbs
» power consumption(input) 1,550 Watt 12.92 amps
» Speed(No load, RPM) 240/565
» Hole capacity
– Twist Drill Ø23mm / 29/32”
– Annular cutter Ø60mm / 2-23/64”
H60T20
MAIN FEATURES
» Powerful double insulated motor.(Forward/Reverse)
» Quick and easy conversion from twist drill to annular cutter.
» MT2 Arbor.
» 2 Gears/6 Speeds
» Over current protection(LED)
» CE confirmed.
* Available in 110/120V or 220/240V, AC 50-60Hz
* Supplied in plastic case complete with ; Arbor for cutters, Safety chain, Coolant bottle, Carabina and Hexagon key.
SPECIFICATIONS
» Height: 430(620)mm / 16.93” (24.40”)
» Width: 200mm / 7.87”
» Length: 260mm / 10.23”
» Stroke: 190(240)mm / 7.48” (9.44”)
» Net Weight 17kg / 37.5 lbs
» Magnet force on 1″ steel plate 15,300N / 3366 lbs
» Power consumption(input) 1,550 Watt / 12.92 amps
» Speed(No load, RPM)
| GEAR | LO | ME | HI |
| 1st | 140 | 190 | 240 |
| 2nd | 330 | 445 | 565 |
» Hole capacity
– Twist Drill Ø23mm / 29/32”
– Annular cutter Ø60mm / 2-23/64” – Tapping M20 / 3/4”
H100MT3
MAIN FEATURES
» Powerful double insulated motor.
» Quick and easy conversion from twist drill to annular cutter
» MT3 Arbor.
» 4 Gears
» Carbon brush wear indication(LED)
» New sliding system – Patented.
» CE confirmed.
* Available in 110/120V or 220/240V, AC 50-60Hz
* Supplied in plastic case complete with ; Arbor for cutters, Safety chain, Coolant bottle, Carabina, and Hexagon key.
SPECIFICATIONS
» Height: 430(620)mm / 16.93” (24.40”)
» Width: 200mm / 7.87”
» Length: 260mm / 10.23”
» Stroke: 190(240)mm / 7.48” (9.44”) Twist
» Net Weight: 17kg / 37.47 lbs
» Magnet force on 1″ steel plate 15,300N / 3366 lbs
» power consumption(input) 1,550 Watt 12.92 amps
» Speed(No load, RPM) 240/565
» Hole capacity
– Twist Drill Ø23mm / 29/32”
– Annular cutter Ø60mm / 2-23/64”
H100MT30
MAIN FEATURES
» Powerful double insulated motor.
» Quick and easy conversion from twist drill to annular cutter
» MT2 Arbor.
» 2 Gears
» CE confirmed.
* Available in 110/120V or 220/240V, AC 50-60Hz
* Supplied in plastic case complete with ; Arbor for cutters, Safety chain, Coolant bottle, Carabina, and Hexagon key.
SPECIFICATIONS
» Height: 430(620)mm / 16.93” (24.40”)
» Width: 200mm / 7.87”
» Length: 260mm / 10.23”
» Stroke: 190(240)mm / 7.48” (9.44”)
» Net Weight 17kg / 37.5 lbs
» Magnet force on 1″ steel plate 15,300N / 3366 lbs
» Power consumption(input) 1,550 Watt / 12.92 amps
» Speed(No load, RPM)
| GEAR | LO | ME | HI |
| 1st | 140 | 190 | 240 |
| 2nd | 330 | 445 | 565 |
» Hole capacity
– Twist Drill Ø23mm / 29/32”
– Annular cutter Ø60mm / 2-23/64” – Tapping M20 / 3/4”
H40MT4
MAIN FEATURES
» Powerful double insulated motor.
» Quick and easy conversion from twist drill to annular cutter
» MT2 Arbor.
» 2 Gears
» CE confirmed.
* Available in 110/120V or 220/240V, AC 50-60Hz
* Supplied in plastic case complete with ; Arbor for cutters, Safety chain, Coolant bottle, Carabina, and Hexagon key.
SPECIFICATIONS
» Height: 430(620)mm / 16.93” (24.40”)
» Width: 200mm / 7.87”
» Length: 260mm / 10.23”
» Stroke: 190(240)mm / 7.48” (9.44”)
» Net Weight 17kg / 37.5 lbs
» Magnet force on 1″ steel plate 15,300N / 3366 lbs
» Power consumption(input) 1,550 Watt / 12.92 amps
» Speed(No load, RPM)
| GEAR | LO | ME | HI |
| 1st | 140 | 190 | 240 |
| 2nd | 330 | 445 | 565 |
» Hole capacity
– Twist Drill Ø23mm / 29/32”
– Annular cutter Ø60mm / 2-23/64” – Tapping M20 / 3/4”
H200MT5
MAIN FEATURES
» Powerful double insulated motor.
» Quick and easy conversion from twist drill to annular cutter
» MT2 Arbor.
» 2 Gears
» CE confirmed.
* Available in 110/120V or 220/240V, AC 50-60Hz
* Supplied in plastic case complete with ; Arbor for cutters, Safety chain, Coolant bottle, Carabina, and Hexagon key.
SPECIFICATIONS
» Height: 430(620)mm / 16.93” (24.40”)
» Width: 200mm / 7.87”
» Length: 260mm / 10.23”
» Stroke: 190(240)mm / 7.48” (9.44”)
» Net Weight 17kg / 37.5 lbs
» Magnet force on 1″ steel plate 15,300N / 3366 lbs
» Power consumption(input) 1,550 Watt / 12.92 amps
» Speed(No load, RPM)
| GEAR | LO | ME | HI |
| 1st | 140 | 190 | 240 |
| 2nd | 330 | 445 | 565 |
» Hole capacity
– Twist Drill Ø23mm / 29/32”
– Annular cutter Ø60mm / 2-23/64” – Tapping M20 / 3/4”
H60AUTO
MAIN FEATURES
» Powerful double insulated motor.
» Quick and easy conversion from twist drill to annular cutter
» MT2 Arbor.
» 2 Gears
» CE confirmed.
* Available in 110/120V or 220/240V, AC 50-60Hz
* Supplied in plastic case complete with ; Arbor for cutters, Safety chain, Coolant bottle, Carabina, and Hexagon key.
SPECIFICATIONS
» Height: 430(620)mm / 16.93” (24.40”)
» Width: 200mm / 7.87”
» Length: 260mm / 10.23”
» Stroke: 190(240)mm / 7.48” (9.44”)
» Net Weight 17kg / 37.5 lbs
» Magnet force on 1″ steel plate 15,300N / 3366 lbs
» Power consumption(input) 1,550 Watt / 12.92 amps
» Speed(No load, RPM)
| GEAR | LO | ME | HI |
| 1st | 140 | 190 | 240 |
| 2nd | 330 | 445 | 565 |
» Hole capacity
– Twist Drill Ø23mm / 29/32”
– Annular cutter Ø60mm / 2-23/64” – Tapping M20 / 3/4”
Hurricane Series

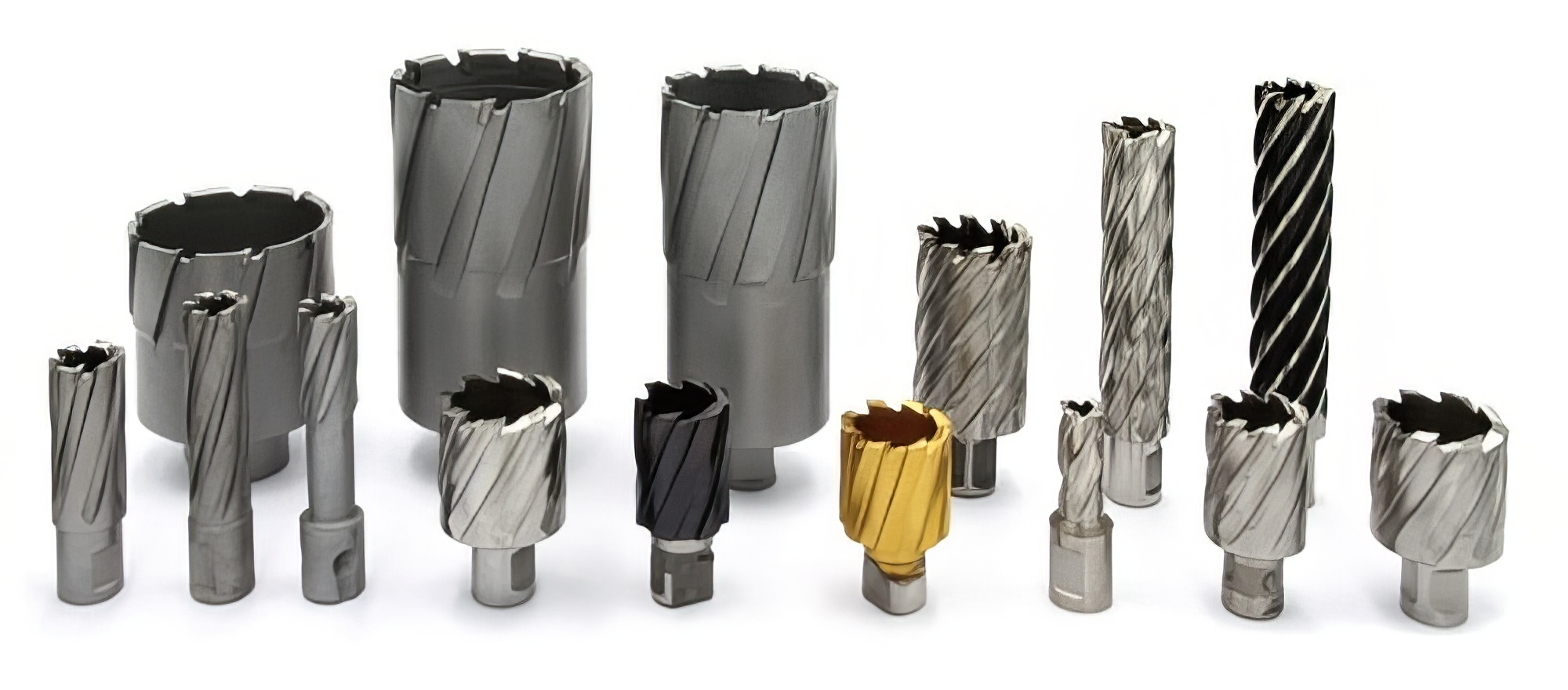

ANNULAR HOLE CUTTERS IN HSS OR TCT
Buy Cutters Products
Oersted Cutters feature engineered geometry, enabling machined quality, burr free holes, to be produced quickly, and accurately, while requiring less horsepower than conventional twist drills.
-

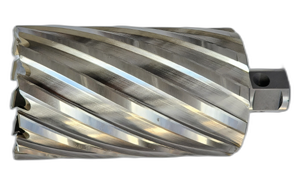

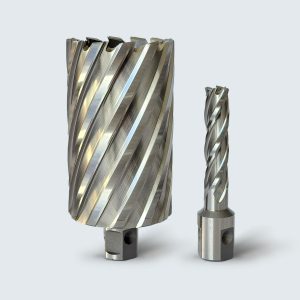

ANNULAR CUTTERS IN HIGH SPEED STEEL
$26.73 – $577.81 Quick View Select options This product has multiple variants. The options may be chosen on the product page -

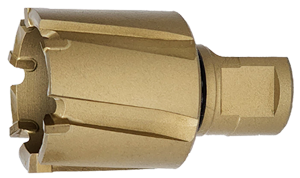

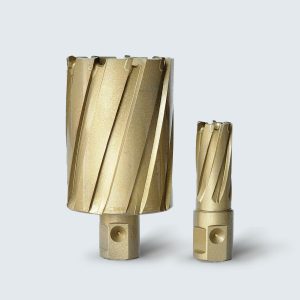

ANNULAR CUTTERS IN CARBIDE TIPPED
$51.43 – $310.64 Quick View Select options This product has multiple variants. The options may be chosen on the product page -

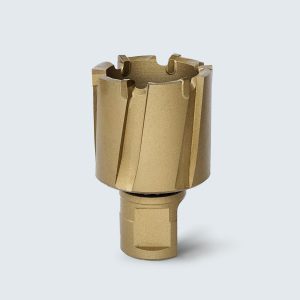

CARBIDE TIPPED RAIL CUTTERS
$53.51 – $104.79 Quick View Select options This product has multiple variants. The options may be chosen on the product page -

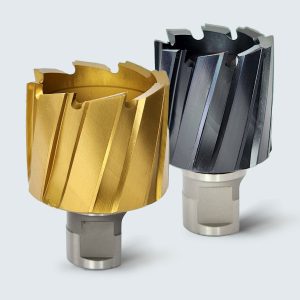

HSS RAIL CUTTERS – GOLD & BLACK
$37.72 – $111.00 Quick View Select options This product has multiple variants. The options may be chosen on the product page
